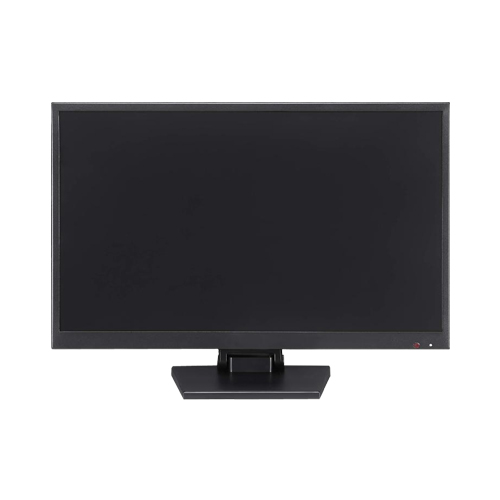

VSM 22INDP, Industrial LCD CCTV 22" monitor (plastic case)

Product code

VSM-22INDP

266.42 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

VSM 22INDP is a 22-inch industrial frameless monitor with HDMI and VGA inputs, designed for continuous 7×24 operation. It features an industrial-grade DID LCD panel, 1920×1080 Full HD resolution, 5 ms response time, 170-degree wide viewing angles, and advanced 3D digital filtering and noise reduction. The monitor delivers vivid, natural-color images with high-fidelity digital processing. It includes built-in stereo speakers, a user-friendly OSD menu, and supports both stand mounting and VESA mounting. Suitable for monitoring centers, transportation hubs, control rooms, and other industrial applications.

Specifications

Model
Model	VSM 22INDP
Display
Screen Size	22 inch
Active Area	476.64 × 268.11 mm
Aspect Ratio	16:9
Panel Type	TFT-LED
Resolution	1920 × 1080
Display Colors	16.7M
Pixel Pitch	0.248 × 0.248 mm
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angle	170° (H) / 170° (V)
Response Time	5 ms
Backlight	LED
Input & Output
HDMI	1 × HDMI 2.0
VGA	1 × VGA
Speakers	2 × 3W stereo
Video
Color Systems	PAL / NTSC / SECAM
3D Comb Filter	Yes
3D Noise Reduction	Yes
OSD Controls	Brightness, contrast, H/V position, clock, phase, color, language
OSD Languages	Chinese / English (other languages supported)
Power & Environment
Power	DC12V, 50/60 Hz
Working Temperature	-30 to +85 °C
Power Consumption	≤ 25 W
MTBF	50,000 hours
Mounting
Mounting Type	Stand mount, VESA mount
Weight	3.5 kg
Accessories
Included	Industrial PSU, screws, cable holder, quick start guide
Certifications
Certifications	CE, RoHS, CCC, FCC, ISO9000, UL
Application
Usage Scenarios	Monitoring, transportation, control rooms, etc.
