VSC HD2BLCTE3F28 2MP, 2.8mm, AHD / TVI / CVI camera, Full-Color

Product code

VSC-HD2BLCTE3F28

68.44 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

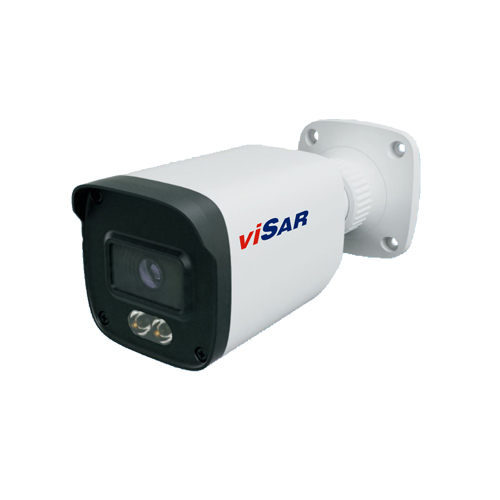

VSC-HD2BLCTE3F28 is a 2MP Full-Color HD analog bullet camera supporting AHD / TVI / CVI / CVBS output and real-time 1080P imaging. Its 1/2.8" CMOS progressive scan sensor delivers high-resolution video and captures moving objects accurately. The camera provides 24/7 full-color imaging with a powerful 20–30 m white LED, which can operate in manual or automatic mode. It features OSD menu via COC, DWDR, BLC, HLC, AGC, 2D DNR, sharpness and contrast adjustment. The robust IP67 metal housing and full 3-axis bracket make it suitable for indoor and outdoor installations.

Specifications

Model
Model	VSC-HD2BLCTE3F28
Camera
Image Sensor	1/2.8" CMOS
Resolution	2MP
Image Size	1920 × 1080
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC
Electronic Shutter	Auto
LED Distance	20–30 m
Frame Rate	30 fps (60Hz) / 25 fps (50Hz)
Minimum Illumination	0 lux (LED ON)
Lens	2.8 mm
Lens Mount	M12
S/N Ratio	≥ 52 dB (AGC OFF)
Ingress Protection	IP67
Functions
Function Control	OSD via COC
Smart LED	Manual / Auto mode
ICR	No
Digital WDR	Yes
Digital DNR	Yes, 2D DNR
AGC	Yes
Auto White Balance	Yes
BLC	Yes
Front Light Compensation	No
Defog	No
HLC	Yes
Sharpness	Yes
Contrast	Yes
Image Setting	Yes
Defect Correction	Auto
Language	Chinese and English
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–80°; Rotation: 0°–360°
Others
Power Supply	DC12V (±15%)
Power Consumption	LED OFF: < 1W; LED ON: < 4W
Working Environment	-40°C to 50°C, 10%–90% RH
Dimensions	165.7 × 69 × 69 mm
Weight	Approx. 0.37 kg
