| Product code | VSC-HD2VDFTE3SW |

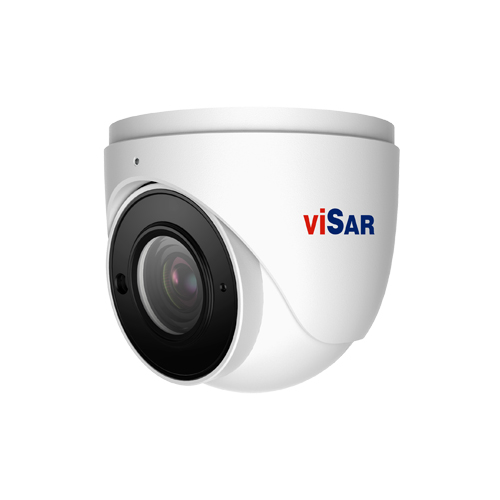

VSC-HD2VDFTE3SW is a 2MP HD analog IR turret camera designed for indoor and outdoor surveillance. It supports AHD / TVI / CVI / CVBS output formats with real-time 1080P resolution. The 1/2.8" CMOS progressive scan sensor ensures accurate capture of moving objects, while the integrated 20–30 m IR illumination guarantees clear night vision. The camera offers OSD menu via COC, true day/night ICR, digital WDR, BLC, HLC, AGC, 2D DNR and multiple image adjustment functions. With its robust IP67 weatherproof housing and 3-axis bracket, the camera is easy to install and provides stable operation in a wide range of environments.
| Model | |
| Model | VSC-HD2VDFTE3SW |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 2MP |
| Image Size | 1920 × 1080 |
| Video Output | AHD / TVI / CVI / CVBS |
| Audio | No |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| IR Distance | 20–30 m |
| Frame Rate | 30 fps (60Hz); 25 fps (50Hz) |
| Minimum Illumination | 0.005 lux @F1.2 (AGC ON); 0 lux with IR |
| Lens | 2.8 mm |
| Lens Mount | M12 |
| S/N Ratio | ≥ 52 dB (AGC OFF) |
| Ingress Protection | IP67 |
| Functions | |
| Function Control | OSD (COC Control) |
| Smart IR | Yes |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital DNR | Yes, 2D DNR |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | No |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Mirror | No |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–75°; Rotation: 0°–360° |
| Others | |
| Power Supply | DC12V (±15%) |
| Power Consumption | IR OFF: < 1W; IR ON: < 4W |
| Working Environment | -30°C to 50°C, 10%–90% RH |
| Dimensions | Φ94.6 × 82.8 mm |
| Weight | Approx. 0.39 kg |
