VSC HD2VDPAS3LF28 2MP, 2.8mm, IR20, AHD / TVI /CVI/CVBS camera

Product code

VSC-HD2VDPAS3LF28

44 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

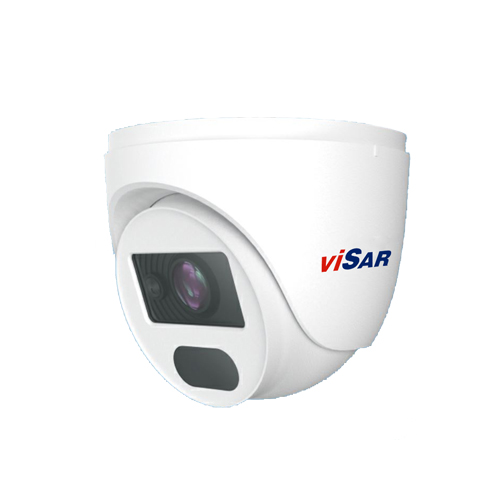

VSC-HD2VDPAS3LF28 is a 2MP HD analog IR turret camera supporting AHD / TVI / CVI / CVBS standard and lossless video output. It provides real-time 1080P video, uses a 1/3" CMOS progressive scan sensor for clear motion capture, and features 10–20 m IR illumination for night viewing. The camera includes true day/night with ICR, digital WDR, BLC, AGC, 2D/3D DNR, smart IR control and OSD settings via COC. With IP66 protection and full 3-axis adjustment (pan, tilt, rotation), it is suitable for indoor and outdoor surveillance applications.

Specifications

Model
Model	VSC-HD2VDPAS3LF28
Camera
Image Sensor	1/3" CMOS
Resolution	2MP
Image Size	1920 × 1080
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC
Electronic Shutter	Auto; 1/50s–1/100000s (PAL), 1/60s–1/100000s (NTSC)
IR Distance	10–20 m
Frame Rate	30 fps (60Hz); 25 fps (50Hz)
Minimum Illumination	0 lux (IR ON)
Lens	2.8 mm
Lens Mount	M12
Protection Grade	IP66
S/N Ratio	≥ 52 dB (AGC OFF)
Functions
Function Control	OSD (COC Control)
Day & Night	ICR
Digital WDR	Yes
Digital NR	Yes, 2D/3D DNR
AGC	Yes
Auto White Balance	Yes
BLC	Yes
FLC	Yes
Defog	No
HLC	No
Sharpness	Yes
Mirror	No
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Language	Chinese and English
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Others
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: < 1W; IR ON: < 3W
Working Environment	-30°C to 50°C, 10%–90% RH
Dimensions	Φ77.5 × 67.6 mm
Weight	Approx. 0.13 kg
