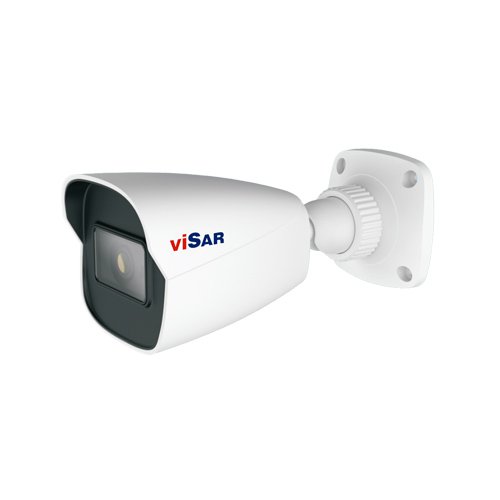

VSC HD5BLAE2F28 5MP, IR30, SmartIR AHD/TVI/CVI camera

---

VSC HD5BLAE2F28 5MP, IR30, SmartIR AHD/TVI/CVI camera

---

Product code

VSC-HD5BLAE2F28

63.55 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus


SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Camera
Image Sensor: 1 / 2.7 "CMOS
Resolution: 5MP
Image Size: 2560 x 1936
Video Output: AHD / TVI /CVI/CVBS
Image System: PAL / NTSC
Electronic Shutter: Auto
IR Distance: 20 ~ 30 m
Frame Rate: 5MP @20fps
Min. Illumination: Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR
Lens: 2.8 mm
Lens Mount: M12
S / N Ratio: ≥52dB ( AGC OFF )
Ingress Protection: IP 67
Functions
Function Control: OSD ( COC Control )
Day & Night: ICR
Digital WDR: Yes
Digital NR: Yes
AGC: Yes
Auto White Balance: Yes
BLC: Yes
LSC: Yes
Defog: No
HLC: Yes
Sharpness: Yes
Mirror: Yes
Smart IR: Yes
Image Setting: Yes
Defect Correction: Yes
Language: 13 languages
Angle Adjustment: Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Others
Power Supply: DC12V ( ± 10% )
Power Consumption: IR OFF : < 1W; IR ON : < 4W
Working Environment: - 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity）
Dimensions ( mm ): 167.5 x 74. 5 x 74. 5
Weight ( net ): Approx. 0.38KG
Junction box: IPT12
