VSC HD5BLF36 5MP, IR30, 3.6mm AHD/TVI/CVI camera

Product code

VSC-HD5BLF36

51.33 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

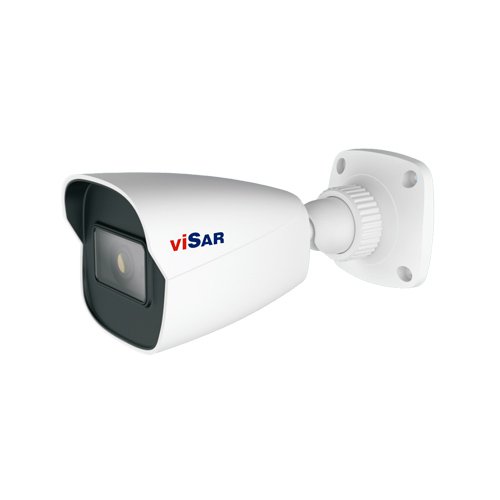

VSC-HD5BLF36 is a 5MP HD analog IR bullet camera supporting AHD / TVI / CVI video output with up to 1500 TVL resolution. It features a 1/2.5" CMOS progressive scan sensor that delivers true-color high-resolution video and accurately captures moving subjects. The camera includes a 20–30 m IR night vision range, true day/night ICR, auto color-to-B/W switching, OSD menu, and COC control. With its IP67 weatherproof housing, low power consumption and 3-axis adjustment bracket, it is suitable for both indoor and outdoor monitoring applications.

Specifications

Model
Model	VSC-HD5BLF36
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image Size	2560 × 1936
Video Output	AHD / TVI / CVI
Image System	PAL / NTSC
Electronic Shutter	Auto
IR Distance	20–30 m
Frame Rate	5MP@20fps / 4MP@30fps
Minimum Illumination	Color: 0.01 lux @F1.2 AGC ON; B/W: 0 lux with IR
Lens	3.6 mm
Lens Mount	M12
S/N Ratio	≥ 52 dB (AGC OFF)
Ingress Protection	IP67
Functions
Function Control	OSD (COC Control)
Day & Night	ICR
Digital WDR	Yes
Digital NR	Yes, 2D DNR
Global Exposure	Yes
Central Exposure	No
AGC	Yes
Auto White Balance	Yes
BLC	Yes
Front Light Compensation	No
Contrast	Yes
Sharpness	Yes
Smart IR	No
Image Setting	Yes
Defect Correction	Auto
Language	Chinese and English
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–80°; Rotation: 0°–360°
Others
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: < 1W; IR ON: < 3.5W
Working Environment	-30°C to 50°C, 10%–90% relative humidity
Dimensions	167.5 × 74.5 × 74.5 mm
Weight	Approx. 0.37 kg
