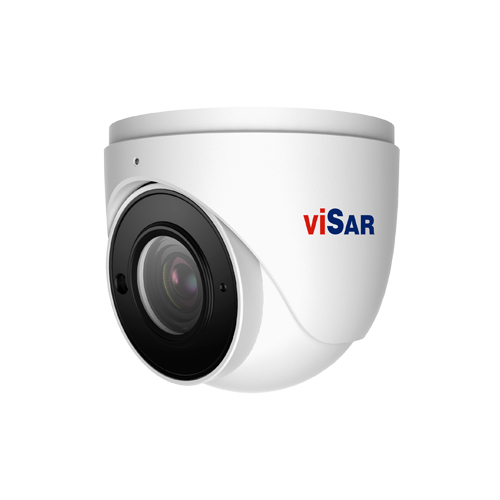

VSC HD5VDAE2F28 HD camera 5MP, 2.8mm, IR30, AHD / TVI / CVI / CVBS by SW

Product code

VSC-HD5VDAE2F28

63.55 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

VSC HD5VDAE2F28 is a 5MP HD analog IR dome camera supporting AHD/TVI/CVI/CVBS formats, delivering true-color imaging with up to 1500 TVL resolution. The 1/2.7" CMOS progressive scan sensor ensures accurate capture of moving objects, while the integrated OSD menu (controlled via COC) provides full adjustment of imaging parameters. The camera features true day/night ICR switching, WDR, BLC, HLC, 2D noise reduction, 13-language OSD, and smart IR illumination up to 20–30 meters. With IP67 protection and durable construction, it is suitable for indoor and outdoor use.

Specifications

Model
Model	VSC HD5VDAE2F28
Camera
Image Sensor	1/2.7" CMOS
Resolution	5MP
Image Size	2560 × 1936
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC
Electronic Shutter	Auto
IR Distance	20–30 m
Frame Rate	5MP @ 20fps
Min. Illumination	Color: 0.01 lux @F1.2, AGC ON B/W: 0 lux with IR
Lens	3.6 mm (2.8 mm optional)
Lens Mount	M12
S/N Ratio	≥ 52 dB (AGC OFF)
Ingress Protection	IP67
Functions
Function Control	OSD (COC Control)
Day & Night	ICR
Digital WDR	Yes
Digital NR	Yes, 2D DNR
AGC	Yes
Auto White Balance	Yes
BLC	Yes
LSC	Yes
Defog	No
HLC	Yes
Sharpness	Yes
Mirror	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Yes
Language	13 languages
Angle Adjustment
Adjustment	Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–360°
Power
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <1W; IR ON: <4W
Environment
Working Environment	-30°C ~ 50°C, 10% ~ 90% RH
Physical
Dimensions	Φ94.6 × 82.8 mm
Weight	Approx. 0.39 kg
Accessories
Available Accessories	VSB IPT12
