VSC HD5VDas2aF36 HD camera 5MP, 3.6mm, LED 30m, AHD/TVI/CVI via OSD

Product code

VSC-HD5VDas2aF36

47.67 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

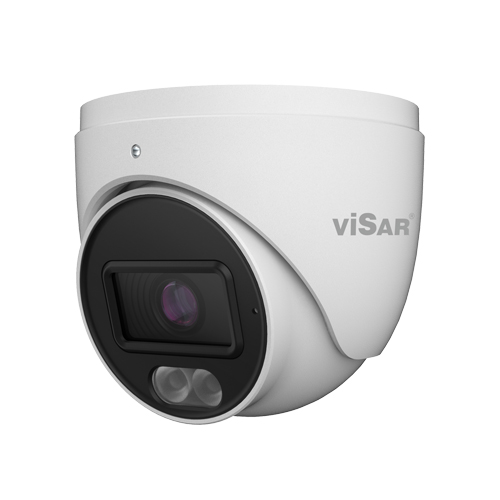

VSC HD5VDas2aF36 is a 5MP Full-Color HD Turret Camera supporting AHD/TVI/CVI video output with true-color imaging even in complete darkness thanks to built-in white LEDs (20–30 m range). The 1/2.5" CMOS progressive scan sensor ensures clear imaging of moving objects, while DWDR, BLC, 2D DNR, auto white balance and additional image controls optimize picture quality in various scenes. The camera supports COC control, built-in audio (coaxial audio valid in TVI mode), and features IP67 weather protection. Compact mechanical design allows flexible ceiling or wall installation.

Specifications

Model
Model	VSC HD5VDas2aF36
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image Size	2560 × 1936
Video Output	AHD / TVI / CVI
Audio	1CH built-in MIC
Image System	PAL / NTSC
Electronic Shutter	Auto; PAL: 1/50s–1/100000s NTSC: 1/60s–1/100000s
LED View Distance	20–30 m
Frame Rate	5MP@20fps / 4MP@30fps
Minimum Illumination	0 lux with LED ON
Lens	3.6 mm
Lens Mount	M12
S/N Ratio	≥52 dB (AGC OFF)
Protection Grade	IP67
Functions
Function Control	OSD (COC Control)
Smart LED	Yes
Digital WDR	Yes
Digital NR	Yes, 2D DNR
Global Exposure	Yes
Central Exposure	Yes
AGC	Yes
Auto White Balance	Yes
BLC	Yes
Front Light Compensation	No
Contrast	Yes
Sharpness	Yes
Coaxial Audio	Yes (TVI mode only)
Image Setting	Yes
Defect Correction	Auto
Language	Chinese / English
Angle Adjustment
Adjustment Range	Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–360°
Power
Power Supply	DC12V (±10%)
Power Consumption	LED OFF: <1.5W; LED ON: <3W
Environment
Operating Conditions	-30°C ~ 50°C; 10%–90% RH
Physical
Dimensions	Φ94.6 × 82.8 mm
Weight	Approx. 0.39 kg
Accessories
Available Accessories	VSB IPT9, VSB IPT12
