VSC IPT4CWF21 IP camera 4MP, 2.1mm, IR10, Cube, P2P, WiFi

Product code

VSC-IPT4CWF21

119.79 €

/pc.

add to favorites

Add to Cart

Mobile application Android, iPhone: SuperLive Plus

SuperLive Plus (Android)
SuperLive Plus (iPhone)
SuperLive Plus (User manual)

Description

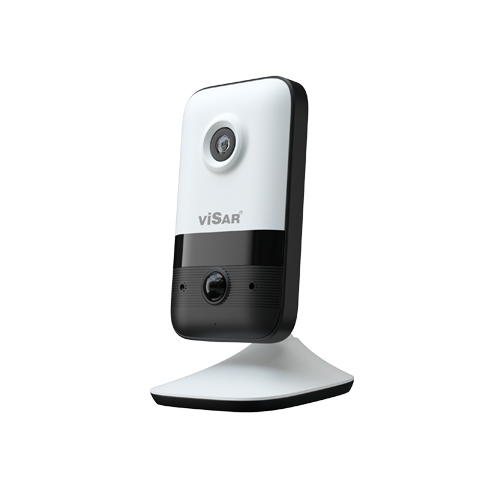

VSC IPT4CWF21 is a 4MP Wi-Fi Indoor Mini Dome Network Camera designed for compact surveillance applications. It features a 1/3" Progressive Scan CMOS sensor, delivering 2560×1440 resolution with H.265+/H.265/H.264+/H.264/MJPEG compression. The 2.1 mm fixed lens offers an ultra-wide 137° horizontal view, while 2D/3D DNR, BLC, HLC, and WDR (78 dB) ensure clear images in complex lighting. The camera supports two-way audio, PIR detection, motion alarm, and microSD storage up to 128 GB. With dual power options (DC12V/PoE), 2.4G Wi-Fi (IEEE802.11b/g/n), and mobile app control, it provides reliable wireless monitoring for smart home or small business use. Operating temperature: −20 °C ~ +50 °C.

Specifications

Model
Model	VSC IPT4CWF21
Camera
Image Sensor	1/3" Progressive Scan CMOS
Image Size	2560×1440 (4MP)
Electronic Shutter	1s ~ 1/100000s
Iris Type	Fixed iris
Min. Illumination	Color: 0.0035 lux @F1.2, AGC ON; B/W: 0 lux with IR
Lens	2.1 mm @F2.1
Horizontal Field of View	137°
Lens Mount	M12
WDR	78 dB
BLC / HLC	Yes / Yes
Defog	No
DNR	2D/3D DNR
Angle Adjustment	Pan: 0°~230°; Tilt: 0°~71°; Rotate: 0°~360°
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Compression	Baseline/Main/High Profile
Bitrate Type	VBR / CBR
Bitrate	64 Kbps ~ 6 Mbps
Resolution	4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1
Main Stream	60Hz: 4MP/3MP/1080P/720P (1~30fps); 50Hz: 4MP/3MP/1080P/720P (1~25fps)
Sub Stream	60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
Image Settings	Saturation, hue, brightness, contrast, WDR, sharpness, NR, flip, etc. (adjustable via client or web browser)
Audio Compression	G.711A / G.711U
ROI	8 regions; configurable separately
App/Cloud Features
Wi-Fi Setup	Configure by scanning QR code
Snapshot	Supported
Recording	Supported
Two-way Audio	Supported
Listening	Supported
Storage	SD card recording and playback
Sharing	Device sharing supported
Interfaces
Network Interface	100M RJ45
Audio	Built-in MIC ×1, speaker ×1; echo cancellation supported
Alarm	1CH input; 1CH output
Reset Button	Yes
PIR Sensor	Horizontal angle: 100°; Range: 5 m
Storage	MicroSD up to 128 GB
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), up to 50 m range
Indicator	Yes
Functions
Remote Monitoring	IE client / Mobile app
Connections	Up to 3 simultaneous users; multi-stream real-time transmission
Protocols	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTPS, HTTP, HTTP POST, RTMP, QoS
Interface Protocol	ONVIF
Smart Alarm	Motion detection, PIR alarm, sensor alarm, SD card full/error, IP conflict, cable disconnection
Analytics	Human detection
General Functions	Watermark, IP filtering, video mask, illegal login protection
IR Distance	0.3–10 m
Power & Environment
Power Supply	DC12V / PoE (IEEE802.3af)
Power Consumption	< 5W
Waterproof	No
Working Conditions	−20 °C ~ +50 °C; Humidity <95% (non-condensing)
Environmental Compliance	RoHS 2.0, REACH, WEEE, Directive 94/62/EC
Physical
Installation	Wall / Ceiling / Desktop mounting
Dimensions	130 × 71.7 × 71.7 mm
Weight	Approx. 0.14 kg
